Features:

  • High capacity – one nozzle can dose up to 9lb/min of nitrogen and 26lb/min of carbon dioxide.
  • Valve Function – plunger design allows close control of coolant.
  • Tool free opening – easy access for cleaning.
  • Maximum protection (IP69K) – wash down at high temperatures and pressures possible.
  • Suitable for every manufacturer’s blender – suitable for paddle and ribbon mixers.

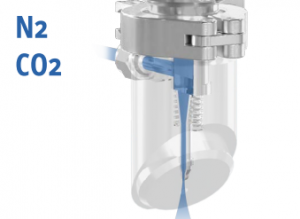

  • Dual fluid – designed for use with either liquid nitrogen or carbon dioxide.

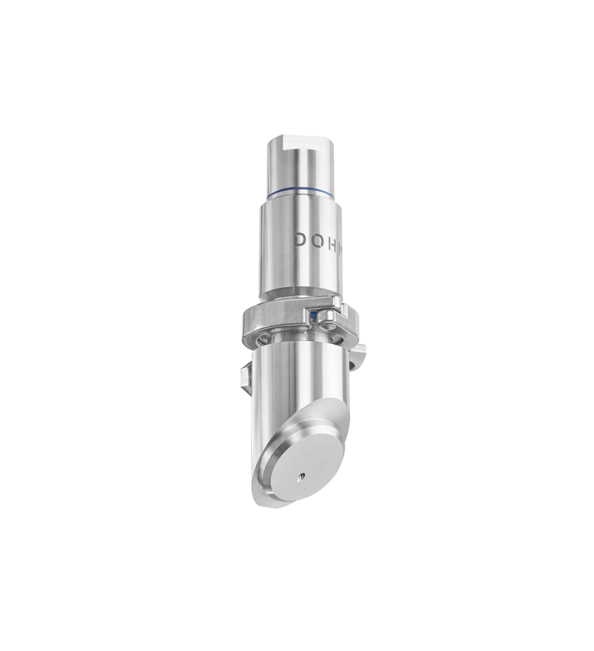

BOTTOM INJECTION NOZZLE MODEL 2024
BODY
  • Stainless steel AISI 304
PLUNGER
  • HDPE
SPRINGS
  • Stainless steel AISI 302
FIXATION
  • Welded to the blender’s body
PNEUMATIC UTILITIES
  • Compressed air with dew point below –30°C must be supplied. Pressure 6bar (min) and 8bar (max)
CLEANING
  • To clean bottom part of the nozzle, unscrew the nut (1) and then remove the clamp (2). When reassembling, first put the clamp back on (2) and then screw the nut back on (1).
